Hybrid implantable ports
Polysite
Description
Designed with the patient and clinician in mind, the Polysite® Low Profile Hybrid Port is available in 6 Fr. Micro, 7 Fr. Mini and 8 Fr. standard… Read more
Indication
The POLYSITE® PI Implantable Infusion Port is indicated for long term access to the central venous system and allows for repeated vascular access. POLYSITE® PI Implantable Infusion Ports are used to administer chemotherapy, antibiotics and antiviral drugs. They can also be used for parenteral nutrition, transfusion of blood or blood products.
POLYSITE® PI Implantable Infusion Ports can be used for high pressure injection of contrast media during diagnostic studies. The maximum flow rate of power injector equipment used with the pressure injectable port may not exceed 5 ml/sec (300psi). For high pressure injection of contrast media, a high-pressure non-coring needle must be used to access the POLYSITE® PI implanted port. The manufacturer recommends the use of PPS PI® pressure injectable safety non-coring Huber needle.
Product highlights
Durable and light weight
- Polysite is a hybrid port composed of a titanium reservoir resistant to Huber needles punctures and a polyosymethylene (POM) outer casting which makes a light weight port.
Polysite ports can be safely used when CT and MRI procedures are performed.
Its low profile and smooth angles allow a certain discretion for patients. Only a small insertion pocket is necesary thanks to the triangular shape of Polysite.
High pressure compatible
- Compatible with pressure injection of contrast media, Polyiste ports supports a flow rate of up to 5mL/s and a maximum pressure of 325psi.

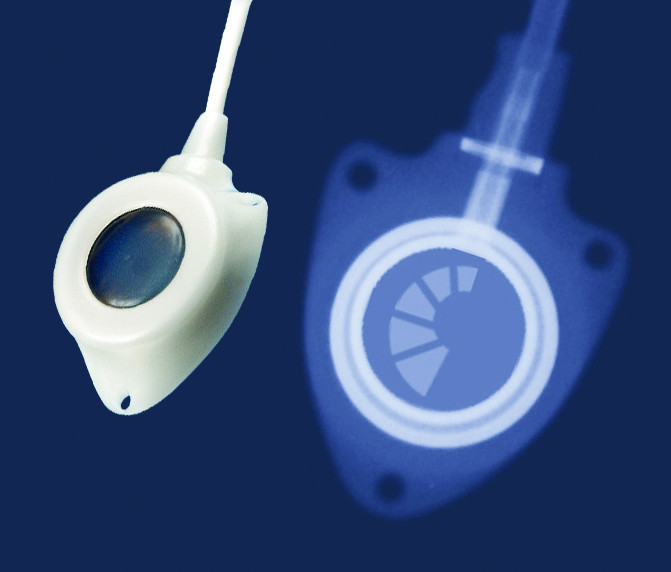

The radio markings on the back of the port allow visualization and identification of the maximum pressure injection rate between 1mL/s to 5 mL/s.
Available for all
- Available in different sizes, Polysite is accessible for all morphologies, from pediatric to adults :
- 3 different sizes : micro, mini and standard
- Different catheters sizes (6Fr to 8Fr) and lenghts (from 60mm to 80mm).
Catheter are available in polyruethane to be connected on the port.
Polysite kit meets your needs

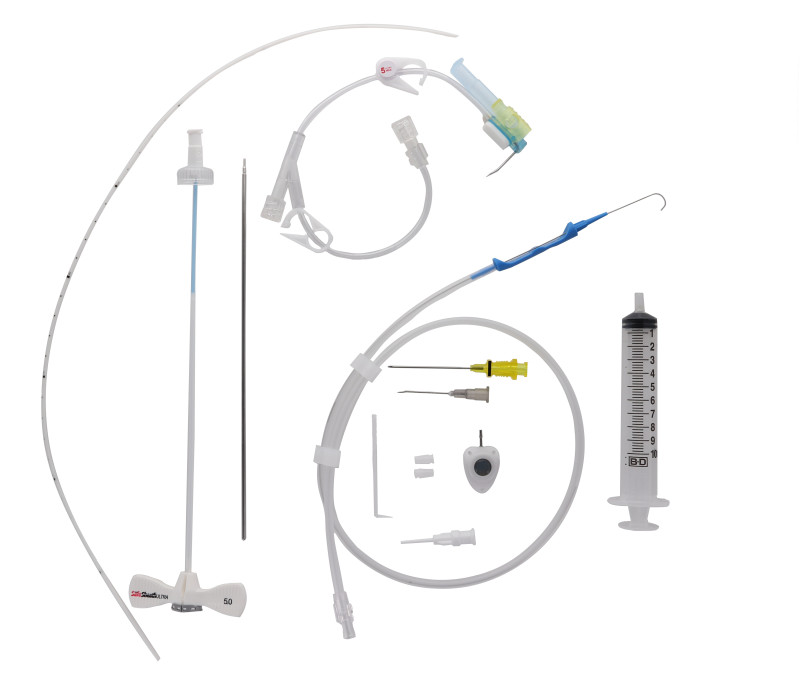

- To ensure a good experience, we offer a Polysite kit consisting of a peelable valved sheath, a PPS PI Huber needle compatible with high pressure and more in order to realize the surgical procedure.
Description

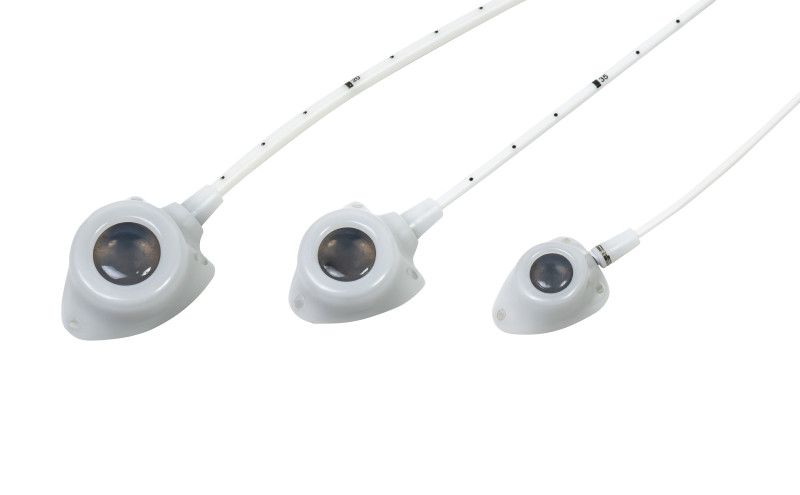

Designed with the patient and clinician in mind, the Polysite® Low Profile Hybrid Port is available in 6 Fr. Micro, 7 Fr. Mini and 8 Fr. standard sizes. The hybrid design with durable titanium reservoir and lightweight plastic body provides the strength and comfort needed for long-term treatment in patients of all sizes.- Port combines lightweight plastic body for comfort and a durable titanium reservoir for durability
- Pressure injectable up to 5 mL/sec at 300 psi*
- Silicone-filled suture holes available for easy explantation
- High flow rates
References and Features
| Implantable port | Catheter | Reservoir | Packaging | |||||
|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Material | Material | Ext. Ø Fr | Volume ml | Volume ml | Units/Box | Units/Case |
| 2016PI | Titanium / POM | Polyurethane | 6 | 0.13 | 0.2 | 1 | 1 | |
| 2016SPI | Titanium / POM | Polyurethane | 6 | 0.13 | 0.2 | 1 | 1 | |
| 3017PI | Titanium / POM | Polyurethane | 7 | 0.17 | 0.35 | 1 | 1 | |
| 3017SPI | Titanium / POM | Polyurethane | 7 | 0.17 | 0.35 | 1 | 1 | |
| 4018PI | Titanium / POM | Polyurethane | 8 | 0.23 | 0.55 | 1 | 1 | |
| 4018SPI | Titanium / POM | Polyurethane | 8 | 0.23 | 0.55 | 1 | 1 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
EN_Catheter Connection - Polysite
-
Instructions for use
