ECG tip location system
PILOT TLS
Description
PILOT TLS - Tip Location System (code VSKTLSMUS) Guidance device for the positioning of the distal tip of PICC, based on ECG technology. Plug: US … Read more
Indication
The pilot TLS is indicated for use in the positioning of PICCs. The pilot TLS provides real-time catheter tip location information by displaying changes in the patient’s cardiac electrical activity. Pilot TLS is indicated for use as an alternative method to chest X-ray or fluoroscopy confirmation of PICC tip placement in adult patients.
Product highlights
A simple and easy to use device for IC-ECG tip location technique:
- More accurate than X-ray or fluoroscopy (1)
- No repeated X-ray exposure (patients and healthcare professionals) (2)
- Cost effective solution(3)
Use our vyclip: sterile connector allowing transmission of the intracavitary electric signal to the system by pinching the catheter stylet or the guidewire.
Description
PILOT TLS - Tip Location System (code VSKTLSMUS)Guidance device for the positioning of the distal tip of PICC, based on ECG technology.
Plug: US (type B)
Language: English

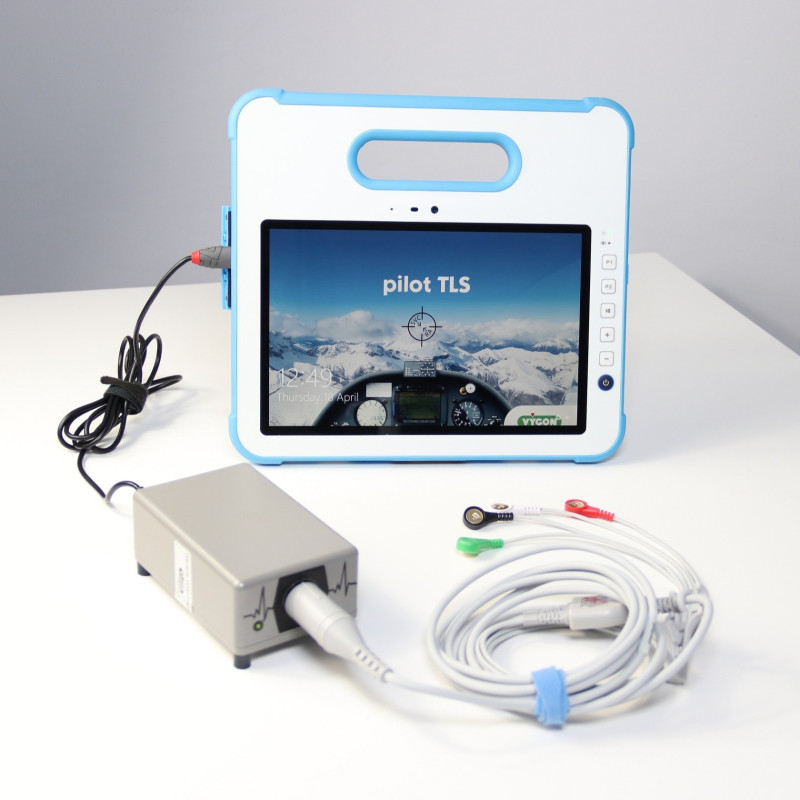

The system is composed of:
- A medical tablet with a kickstand attached on the back
- The medical tablet’s power supply
- A pilot TLS module attached to a USB-A cable
- A stabilization base (option to maintain the black ECG lead for its connection to saline or alligator clip cable connector
- An ECG cable with 4 leads (red, white, green, black)
- 1 USB flash drive
The pilot TLS is supplied with the User Manual and a System Certificate of Conformity. A digital Quick Start Guide is available on the software’s Home page.
References and Features
| Packaging | |||
|---|---|---|---|
| Favourites | Code | Units/Box | Units/Case |
| VSKTLSMUS | 1 | 1 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free No
Documentation
-
Brochure_Pilot_TLS - 2025
-
Instructions for use
